Technical specifications and options
With the flexibility of choosing between models with or without a servo motor, we offer the perfect fit for your application.
A wide range of options with 6 different bore sizes and 2 motor mounting options, giving you the versatility to optimize performance. Built with robust construction and based on the ISO 15552 standard, our cylinders are engineered to handle even the most demanding environments. With the convenience of maintenance-free operation and the option of IP65 protection for added reliability. Backed by Norgren's reliable technology, ensuring durable and high-quality and long-life performance. Enhance your system further with our wide range of compatible motors, drives, and accessories.
32, 40, 50, 63, 80, 100 mm
100 mm – 1500 mm stroke
Up to 30.4kN
Speed max. 1.6 m/s
Operating temperature 0ºC to 80ºC
Ambient temperature motor 0ºC to 40ºC
Protection Class IP40 or IP65
Expertise
What is an Electric Actuator?
An electric actuator is a device that can create movement of a load, or an action requiring a force such as clamping, using an electric motor to create the necessary force.
What is an Electric Motor?
An Electric Motor is a device that turns electric current flow into mechanical rotation of a spindle, or rotor. The rotation is turned into linear motion in many applications.

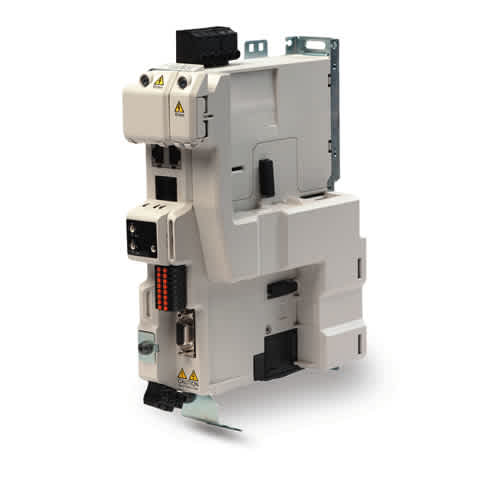

What is an Electric Drive?
An electric drive (often referred to as an electric controller) is a device used to control the output of a motor used, for example, to produce linear motion. The drive will accurately control the motor output and the motor response against a controlling input.
Norgren ELION actuator range extended with IP65
Norgren has extended its range of electric actuators with the introduction of the rod-style Norgren ELION with IP65 rating. Its latest model has achieved the ingress protection rating designed to define levels of sealing effectiveness.
